Type LHD (Flame-Retardant Planking)

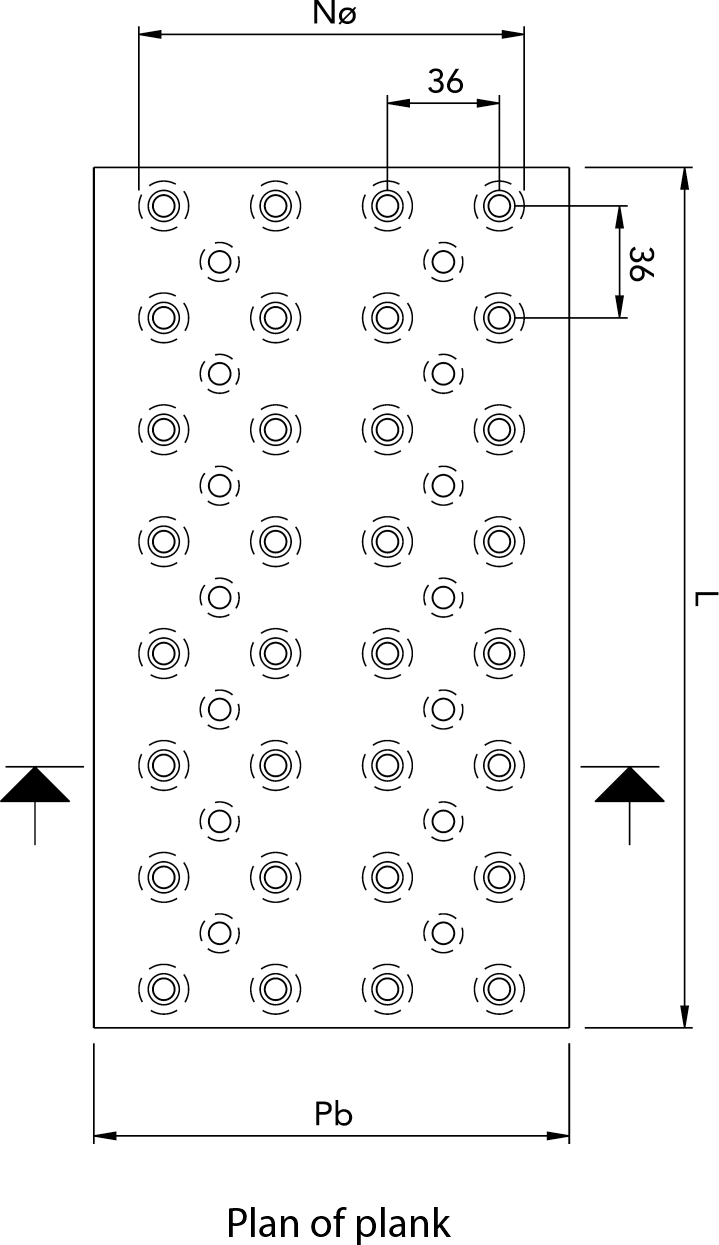

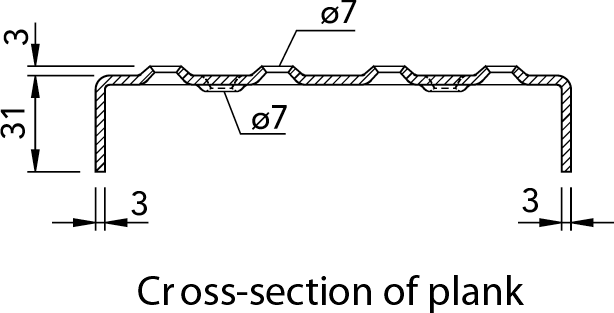

Comprising of 7mm dia punched raised and depressed holes, in 3mm thick material.
This punched profile is heel friendly with good slip resistance and very low visual transparency of 3-5%.

Manufactured in various combinations in relation to: - width, height, length and profile.

Supplied combined together as welded modules for easy fitting or individually to sub-contractors if preferred.


Carbon Steel, Stainless Steel, Aluminium and Incoloy 800HT


Type LHD is used in industrial applications as transformer platforms, offshore oil & natural gas drilling rigs requiring low hole density to limit the amount of oxygen and thus starve the source of the fire. Also used in public areas such as balconies.
