Type O2

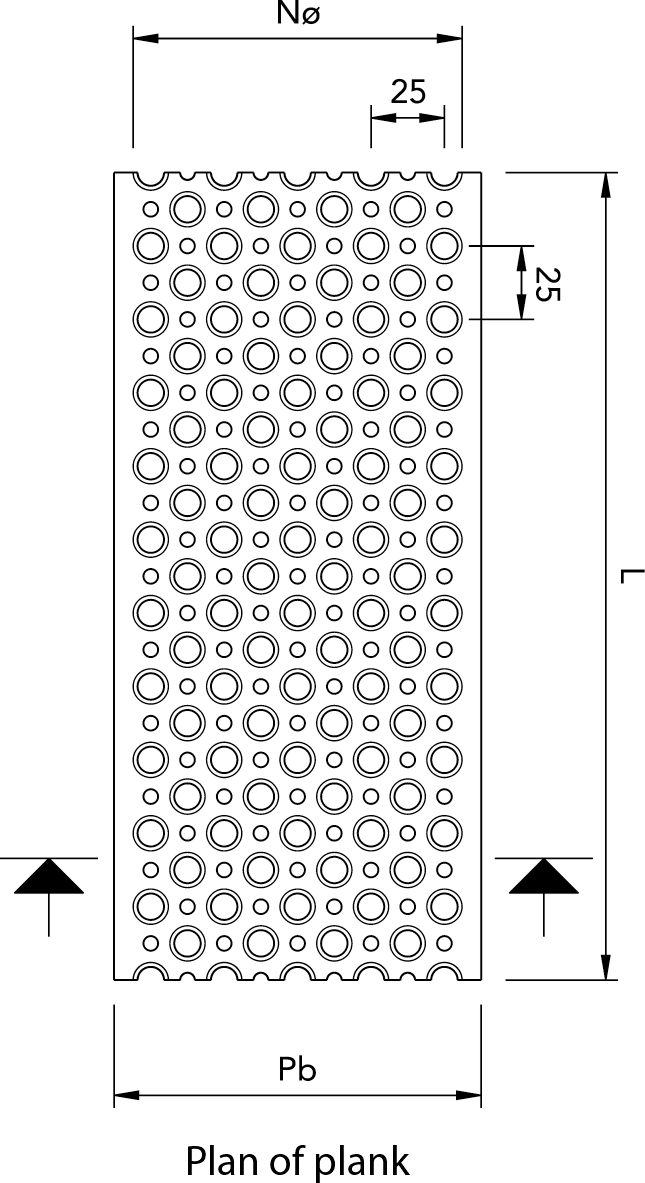

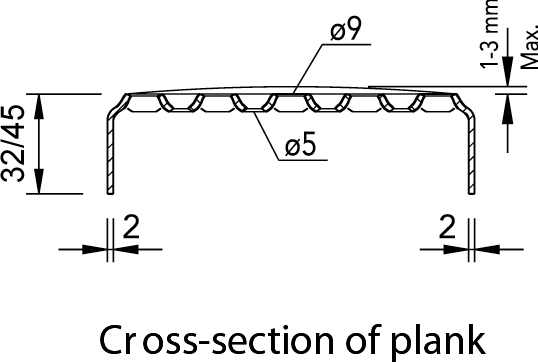

Comprising of 9mm dia punched raised holes and 5mm dia depressed drainage holes, in 2mm thick material.
This punched profile provides an even surface with excellent slip resistance, unsurpassed high strength to weight ratio and low transparency of 20-25%.

Manufactured in various combinations in relation to: - width, height, length and profile.

Supplied combined together as welded modules for easy fitting or individually to sub-contractors if preferred.

Materials

Carbon Steel and Stainless Steel

Applications

Type O2 is used in all sectors of industrial, commercial and residential buildings. This pattern is also used in our "achil" range of stair treads.
