Fixing clips for mesh gratings
Fixing clip assemblies for bearing bar centres:- 22mm, 33mm or 40-50mm:
Universal retainer clamp for attachment of gratings to a support. Available for transverse mesh of 20mm upwards and applicable for grating heights from 20-70 mm.
The complete clip assembly consists of:
1 saddle clip for 22mm, 33mm or 40-50mm
1 bolt M8x60 or M8x80
1 underclamp 11/22/33 or 40-50mm
1 nut M8
All of the assemblies are manufactured in hot-dip galvanised steel or stainless 1.4404 (except 40-50mm clip assembly)
Fixing clip assemblies for mesh size 9-15mm: (Not suitable for all applications. Please consult our technical department)
Universal retainer clamp for attachment of gratings with mesh 9x30 mm and 15x30 mm to a support. Applicable for grating heights from 20-70 mm.
The complete clip assembly consists of:

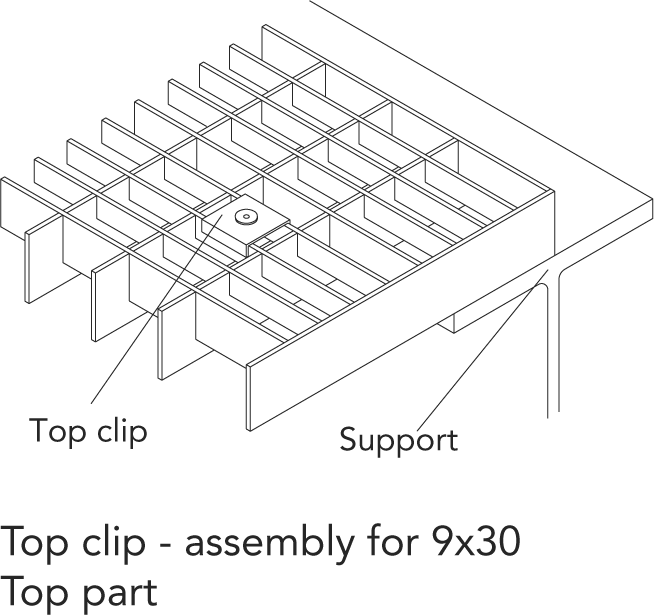

1 Top clip
1 M8x80 allen key headed bolt
1 Underclamp 11/22/33
1 nut M8
Manufactured in hot-dip galvanised steel.
Connecting clip assembly:
Universal connecting clip for gratings. Used for connecting two gratings and may be used for grating heights from 20-50 mm.
Consists of:
2 machine screws M6x16 or M6x40
1 bottom part clamp fitting with threaded hole
1 upper part clamp fitting
Manufactured in hot-dip galvanised steel
