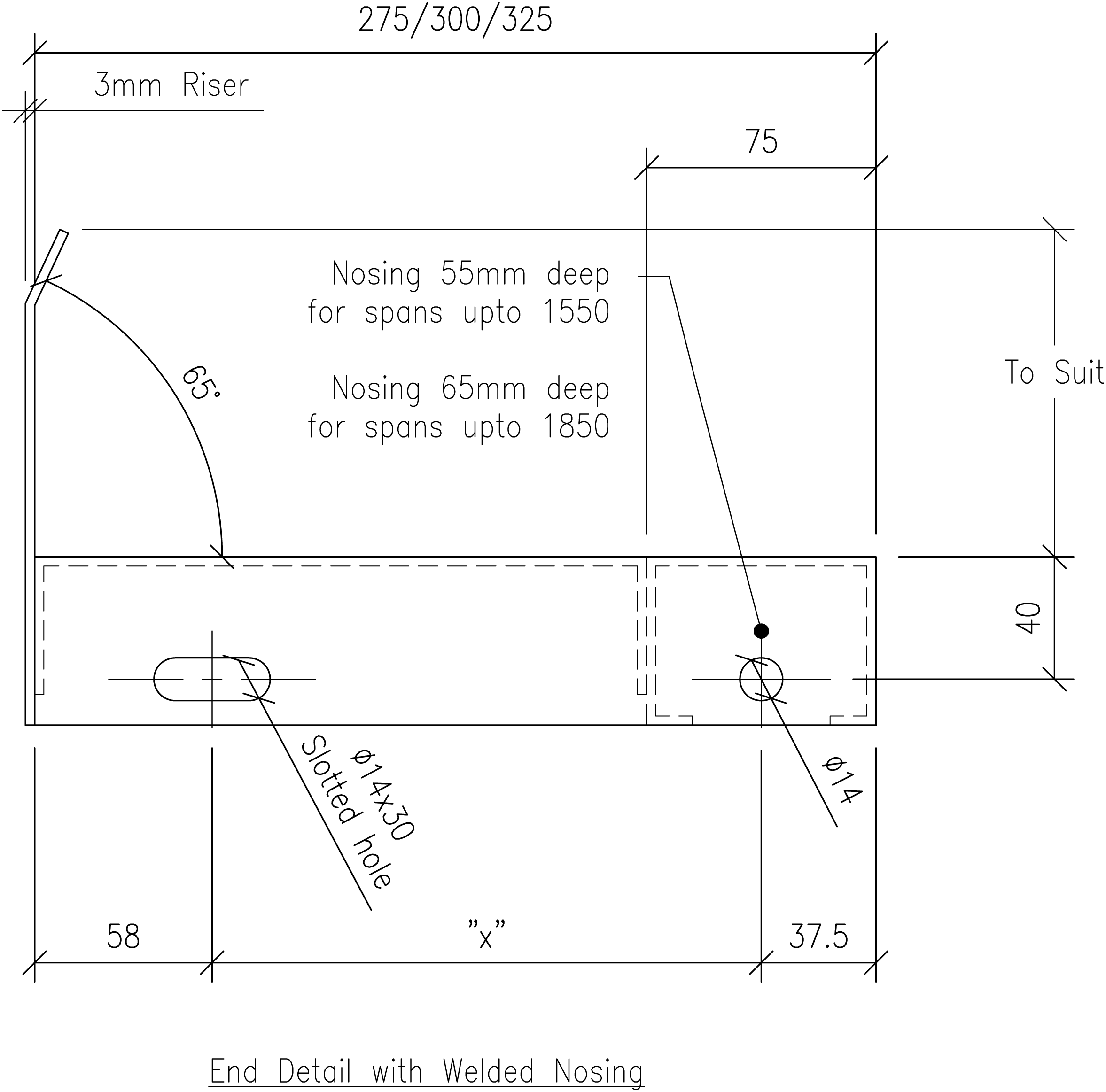

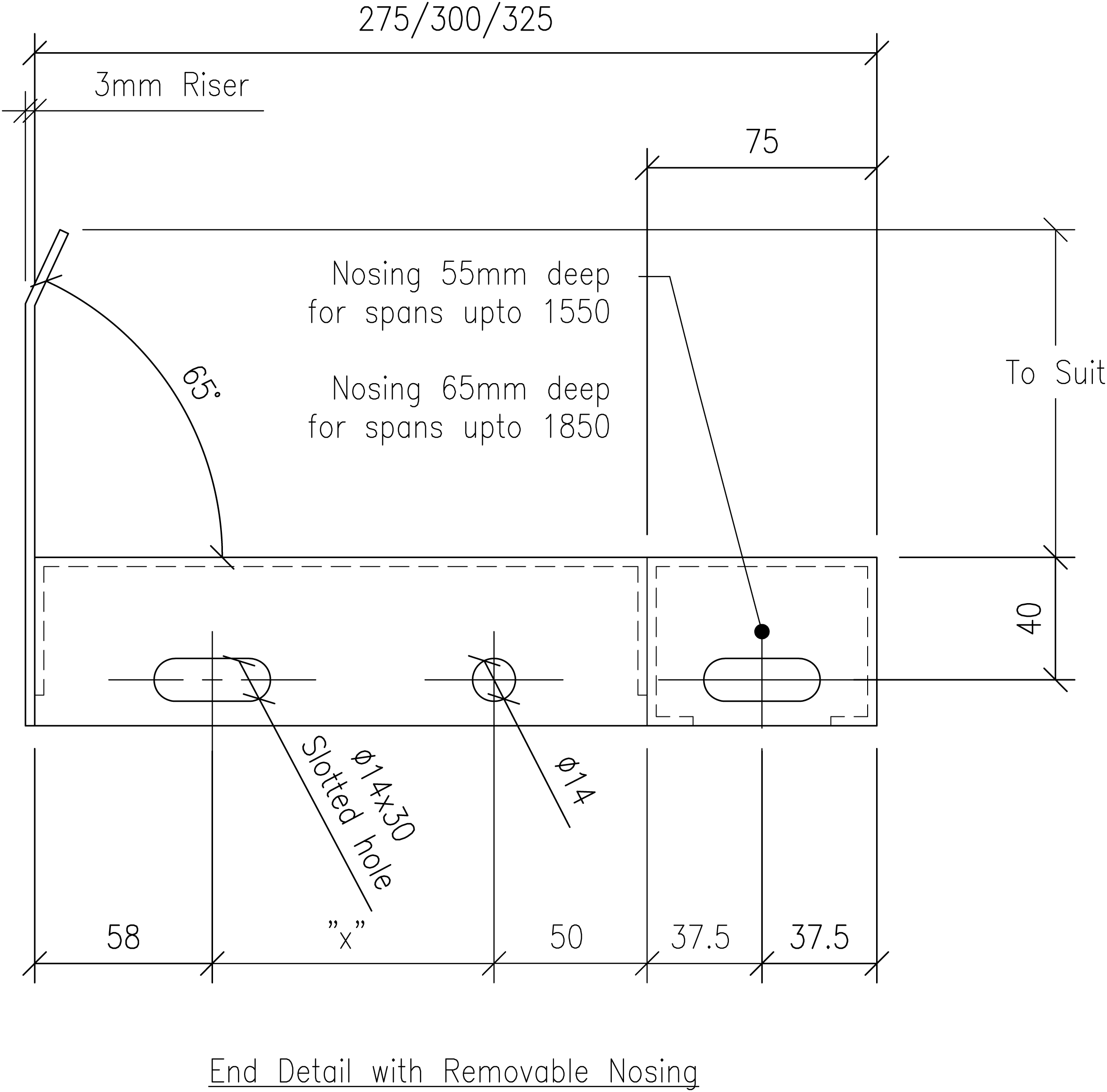

| Type O5-M (Made to order only)Bespoke Stair tread available with or without a removable nosing & riser plate. Manufactured from the O5 plank pattern which benefits from 5mm dia raised/depressed holes providing a stiletto proof, non-slip surface (PTV79); ideal for public & institutional type buildings. MaterialsGalvanised Carbon Steel to BS EN 1461:2009 & Aluminium ApplicationsFire Escapes, Secondary & Main Staircases requiring BS8300 or Part M building regulation compliance. Schools, Universities, Commercial, Industrial & Institutional areas. Landings and walkways are manufactured from the standard O5 planks welded together into modules ready for fitting. |
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Tullamore Footbridge
Type O5-M (Treads 2500x325mm including Cranked Rear Riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
Tullamore Footbridge
Type O5-M (Treads 2500x325mm including Cranked Rear Riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
HMS Gallipoli
Type O5-M (1800mm span x 325mm incl cranked riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
HMS Gallipoli
Type O5-M (1800mm span x 325mm incl cranked riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Tullamore Footbridge
Type O5-M (Treads 2500x325mm including Cranked Rear Riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
Merchant Taylor School, Middlesex
Type O5-M (Treads: 1200mm x 300mm incl cranked riser, Landings: 100x45/15+2mm fabricated into panels, Galvanised + Polyester Powder Coating RAL7016 to tread)
Applications: Stair Treads/Landings
HMS Gallipoli
Type O5-M (1800mm span x 325mm incl cranked riser, Galvanised with Polyester Powder Coated Nosing)
Applications: Stair Treads/Landings
