Type O3

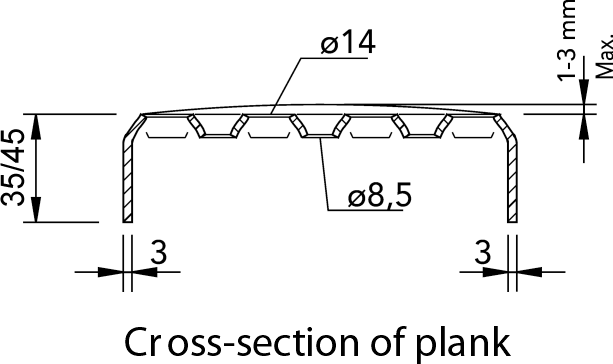

Comprising of 14mm dia punched raised holes and 8.5mm dia depressed drainage holes, in 3mm thick material.
This punched profile provides excellent slip resistance, unsurpassed high strength to weight ratio and increased drainage owing to the larger holes giving a transparency of 28-32%.

Manufactured in various combinations in relation to: - width, height, length and profile.

Supplied combined together as welded modules for easy fitting or individually to sub-contractors if preferred.

Materials

Carbon Steel, Stainless Steel and Aluminium

Applications

Type O3 is used in all sectors of industrial and commercial buildings that require high loading criteria.
