Type O5

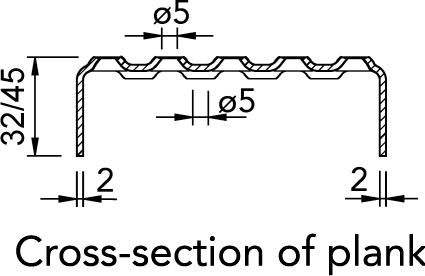

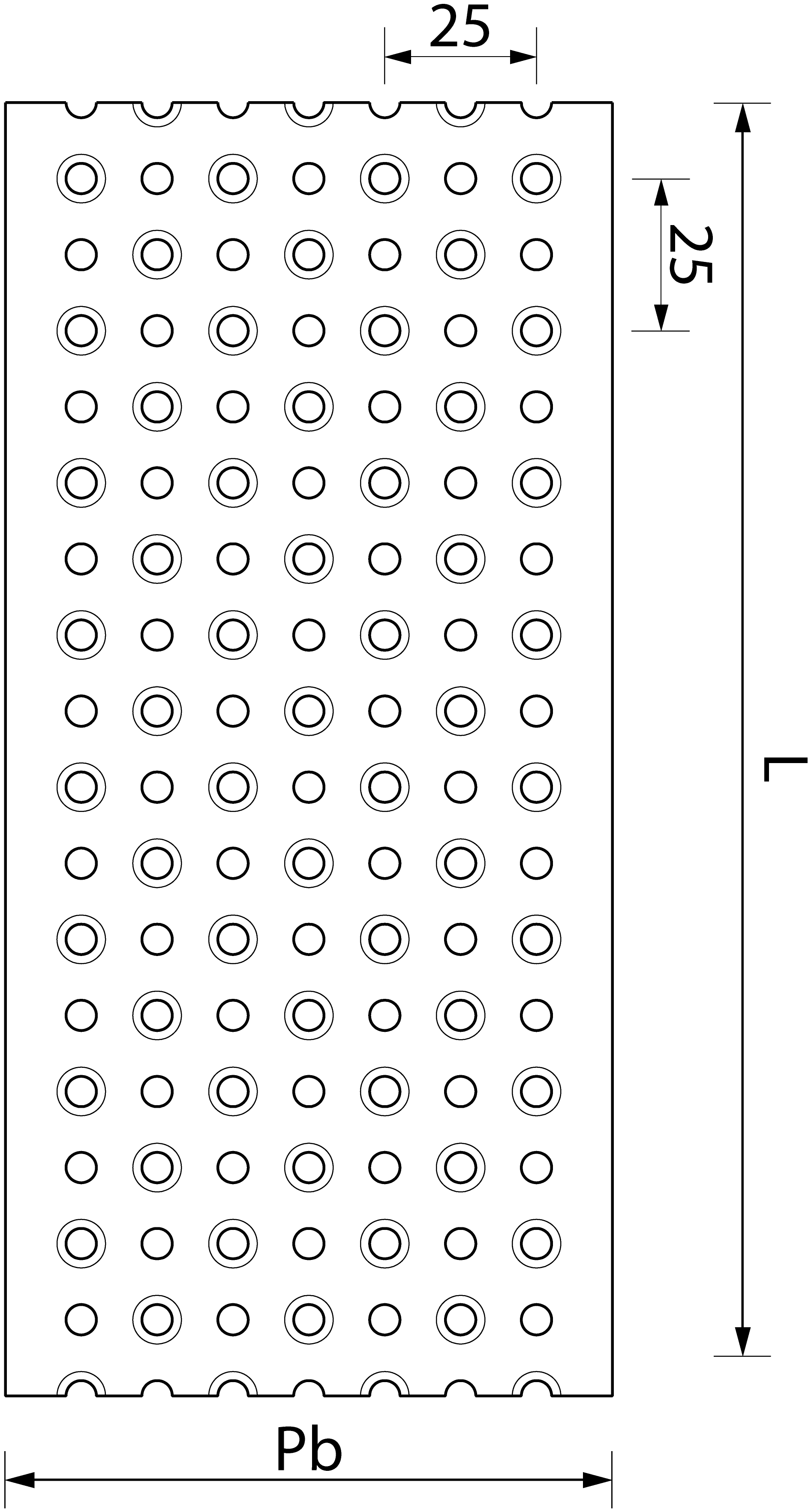

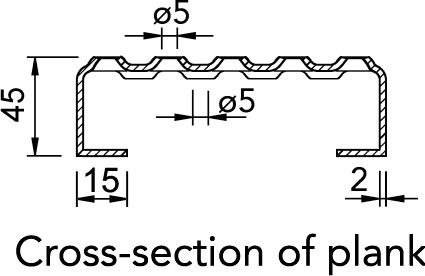

Comprising of 5mm dia punched raised and depressed holes, in 2mm/3mm thick material.
This unique punched profile is stiletto proof with exceptional slip resistance and low visual transparency of 8-9%.

Manufactured in various combinations in relation to: - width, height, length and profile.

Supplied combined together as welded modules for easy fitting or individually to sub-contractors if preferred.

Materials

2mm thick Carbon Steel, 3mm thick Aluminium

Applications

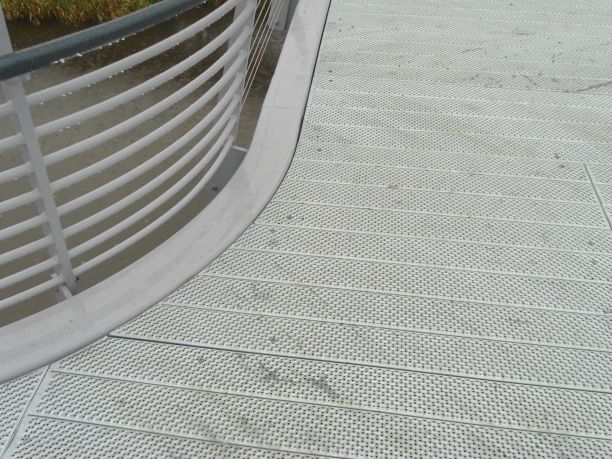

Type O5, with its heel proof properties, is used in public and institutional areas; predominantly as main access and fire escape routes. In industrial areas, the small 5mm dia holes ensure no falling objects pass through injuring people below such as motorway gantries.
